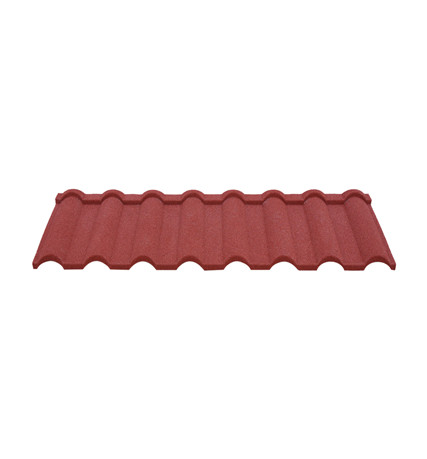

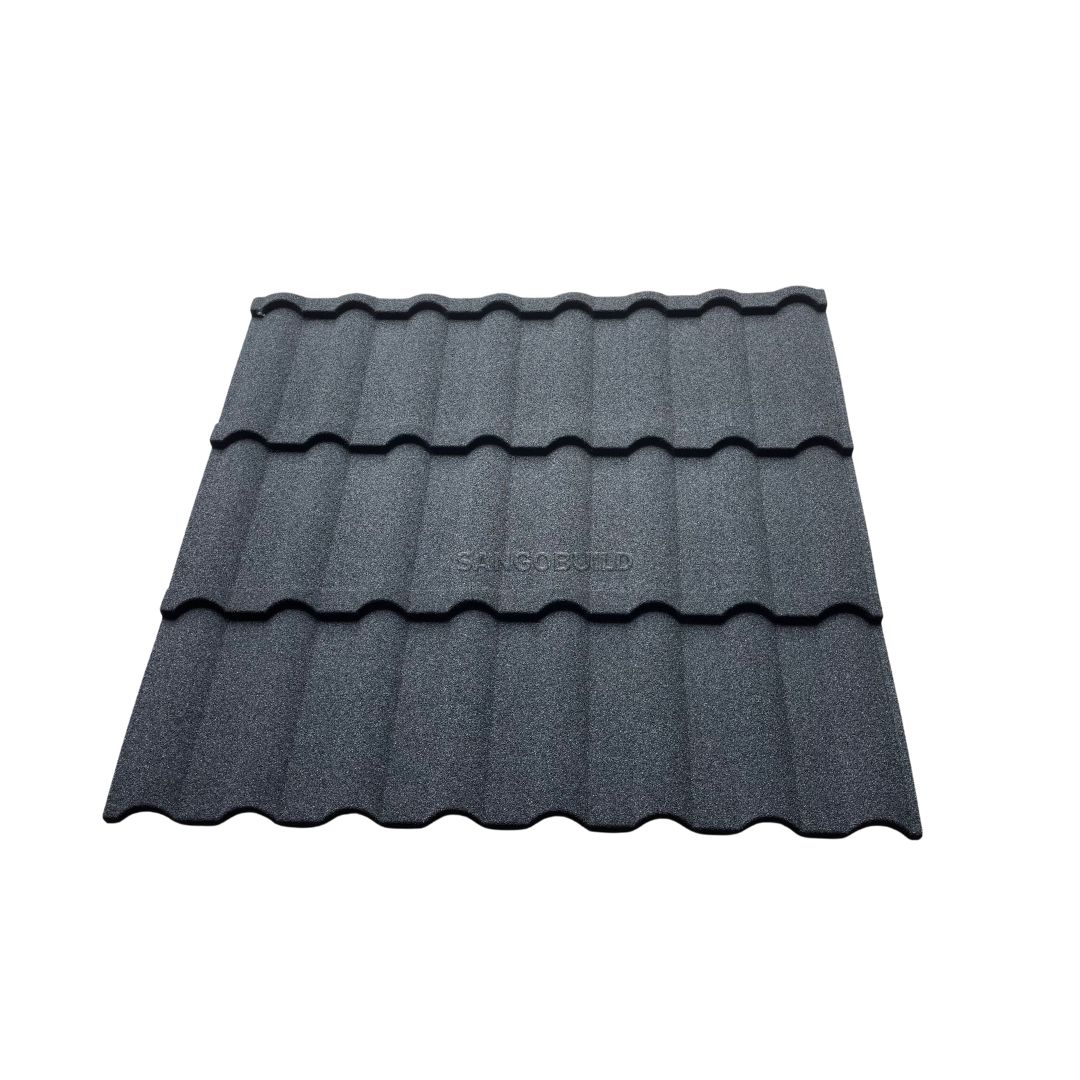

Milano Tile

Size:1340x420mm

Effective Size:1290x370mm

Thickness:0.35-0.55mm

Coverage Area:0.48sq.m

Tiles/Sq.m:2.08pieces

Warranty:50 years


Product Description

Milano Roofing

Milano roofing Warm tones are mainly used, as milano roofing clay bricks are mostly red or yellow. The stone coating on the surface of sangobuild Milano not only imitates the color perfectly, but the surface is coated with the latest coating film to prevent fading. Classic colors and shapes match the house's unique walls. Create something that people admire. Simple roof tiles can match any wall.

Specification

Product Name
Milano Tile
Material
Galvalume steel(Aluminum Zinc plated steel sheet=PPGL), Natural stone chip, Acrylic resin glue
Color
Black, Red, Blue, Green, Customized
Tile Size
1340x420mm
Effective Size
1290x370mm
Thickness
0.35mm,0.40mm,0.45mm,0.50mm,0.55mm
Weight
2.35-3.50kgs/pc
Coverage Area
0.48sq.m./pc
Tiles/Sq.m.
2.08pcs
Certificate
SONCAP, COC, UL, ISO9001, CE
Used
Residential, Commercial construction roof

Milano Tile

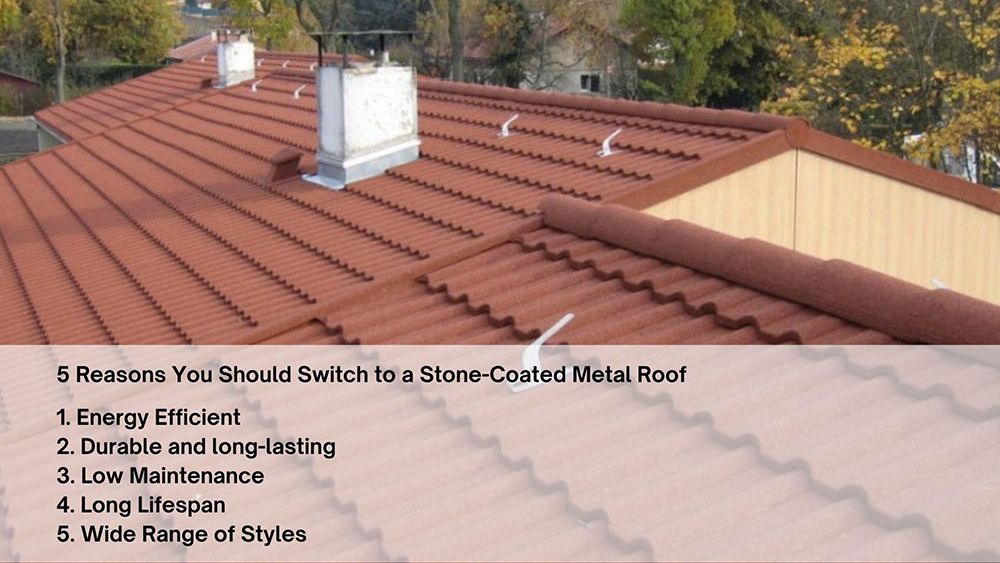

The Advantage of Milano Roofing


1.Excellent durability and waterproof

High-quality aluminum zinc plated steel sheet and natural stone chip coating with acrylic resin glue make stone coated roof tile to superior corrosion resistance and waterproof. The warranty could be last up to 50 years.


2.Lightweight and easy to install

The weight of stone coated metal roof tile is only 1/6 of the traditional tile, only 5.20-6.40kgs/sq.m.It is easy to transport, store and install.


3.Economic

Because it is lightweight but big size, so it usually just takes 3-5days for 2 workers to finish all the installation for a common residence and related charge of shipment and installation be reduced sharply.


4.Noise reduction and heat insulation

The stone chips could reduce the noise when raining or hailing, it also could insulate from heat when exposing to extremely UV and keep warm in Winter.


WHAT'S STONE COATED?


It used to be that there were only a couple of types of metal roofing — corrugated metal, which has certainly improved over time but aesthetically has always been limited in options, or the much more costly copper cladding.

The latest product – stone coated metal roofing. Stone coated steel roofing is combined with the look of tile, shake or shingle or other types to give a strong, durable roof along with fantastic good looks. Whatever the style of your home or property, you will likely be able to find a metal roofing product to match your needs.

What materials do we use for producing 50 years warranty high-quality steel roofing sheets?
First, let's check the structures:



Shingle Tile Stone Coated Metal Roof Panel Components

Overglaze – semi-gloss finish; added protection

Stone Granules – color; UV resistance; coverage

Basecoat – adhesion; UV protection; color blended

Acrylic Primer – priming system; enhances adhesion

Aluminum-Zinc Alloy Coating – prevents corrosion; protection

Steel – 0.33mm to 0.55mm thickness; load-bearing; flexible

Aluminum-Zinc Alloy Coating – prevents corrosion; protection

Acrylic Primer – priming system; enhances adhesion


In general, there are 3 main parts of raw material contents:

① Stone Chips ( Beautiful look, effective heat / UV resistant, noise reduction, anti-slip and etc features)

② Galvalume Steel Plate ( Eco-friendly and recyclable material, strong, light-weight, anti-corrosion, waterproof)

③ Acrylic Glue ( Premium sealing performance, strong adhesion, anti-algae)

Cuba Aluminum Roof Building Materials Roof Tiles Haiti Metal Slate Colored Galvalume Panel Corrugated Water Roofing Sheet



Shingle Tile

Accessories of Roofing System


Shingle Tile

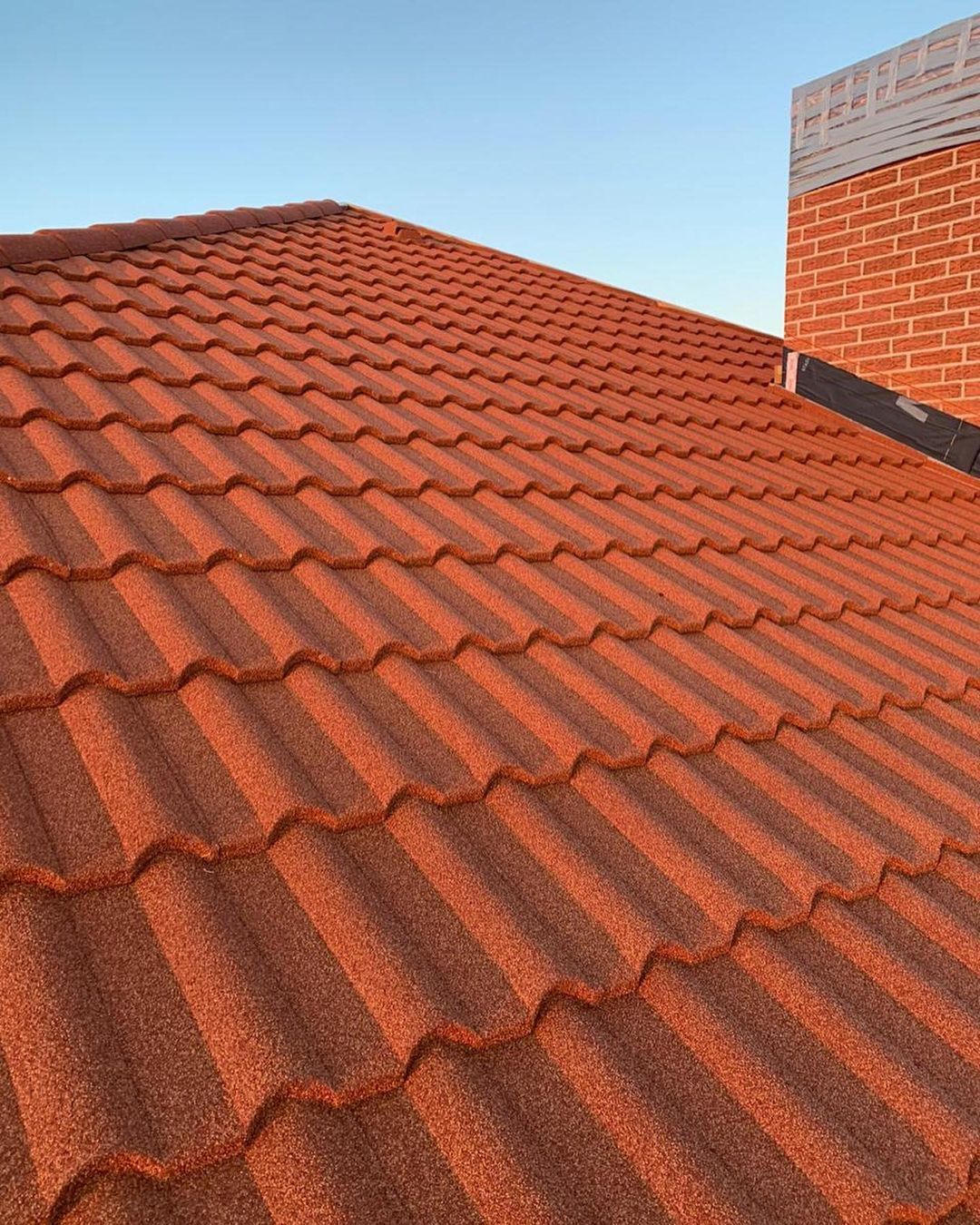

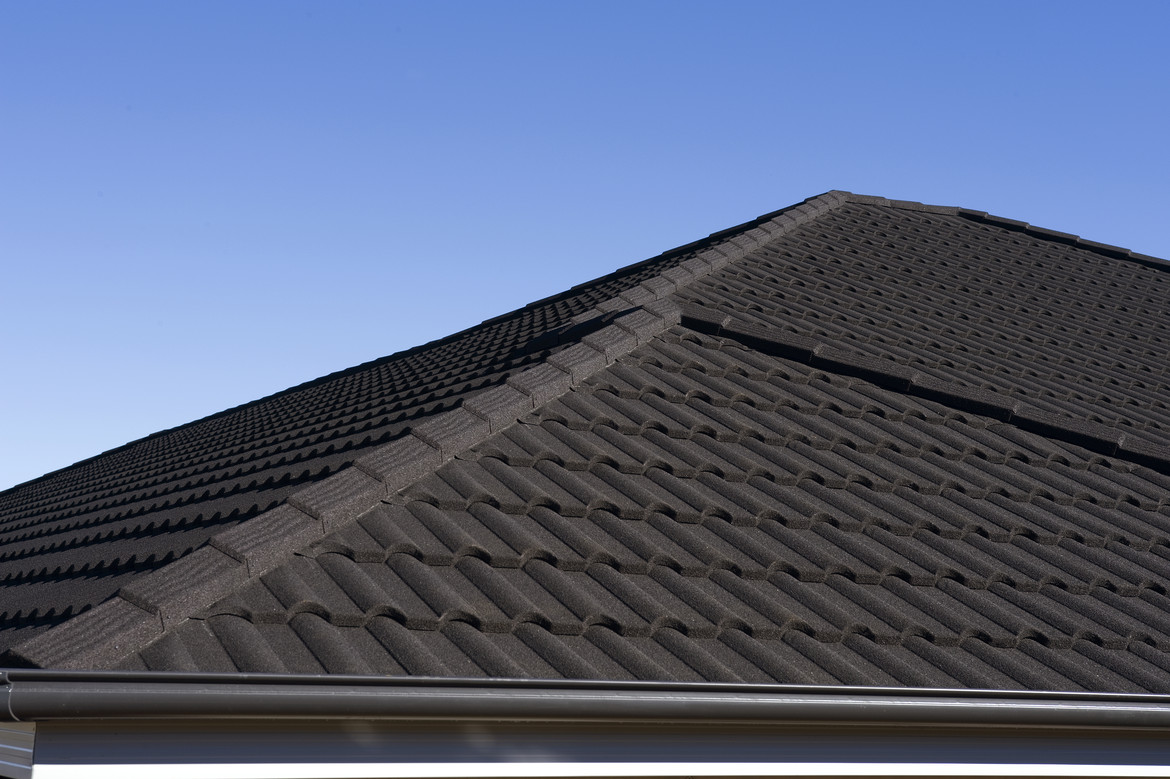

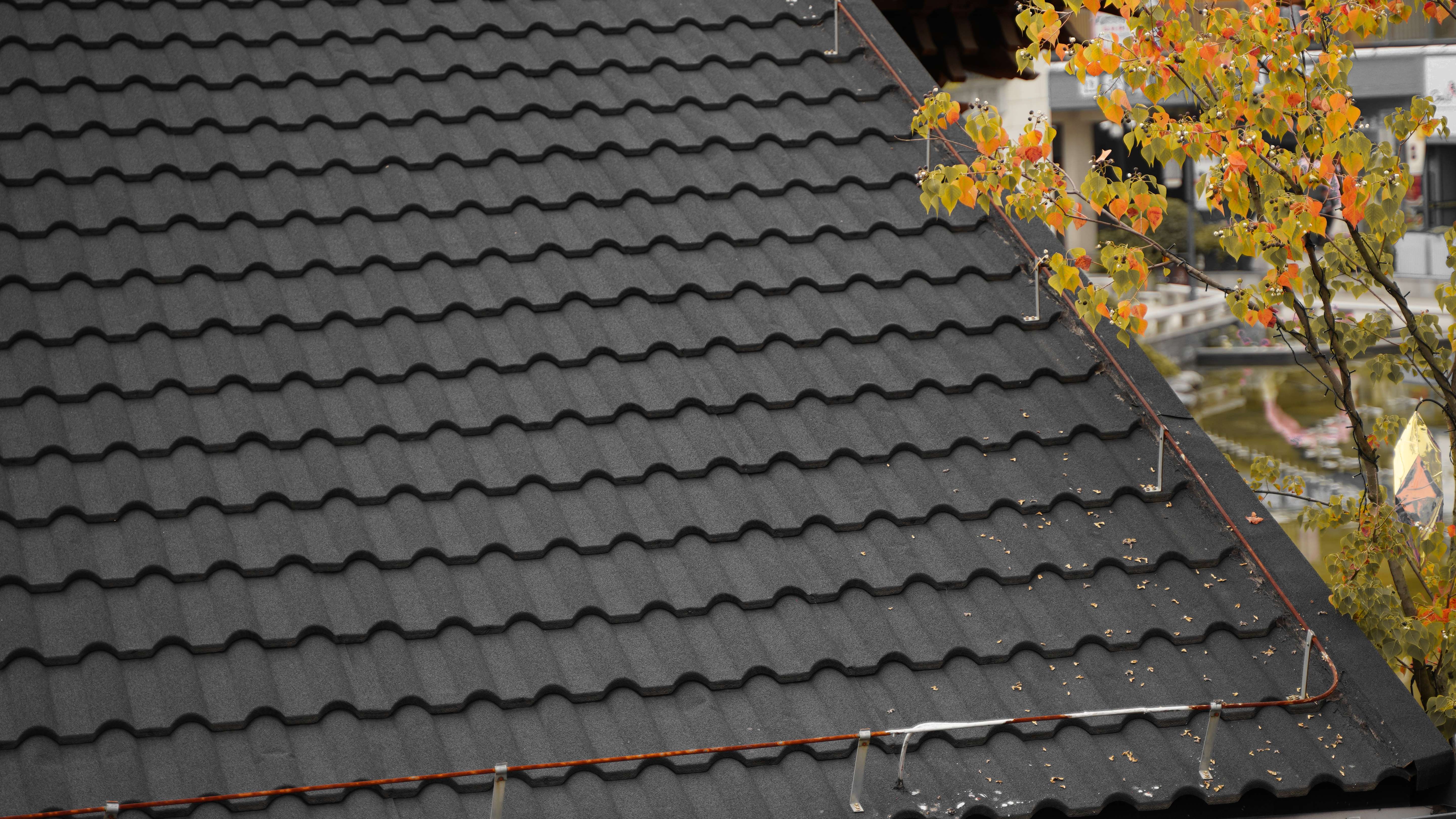

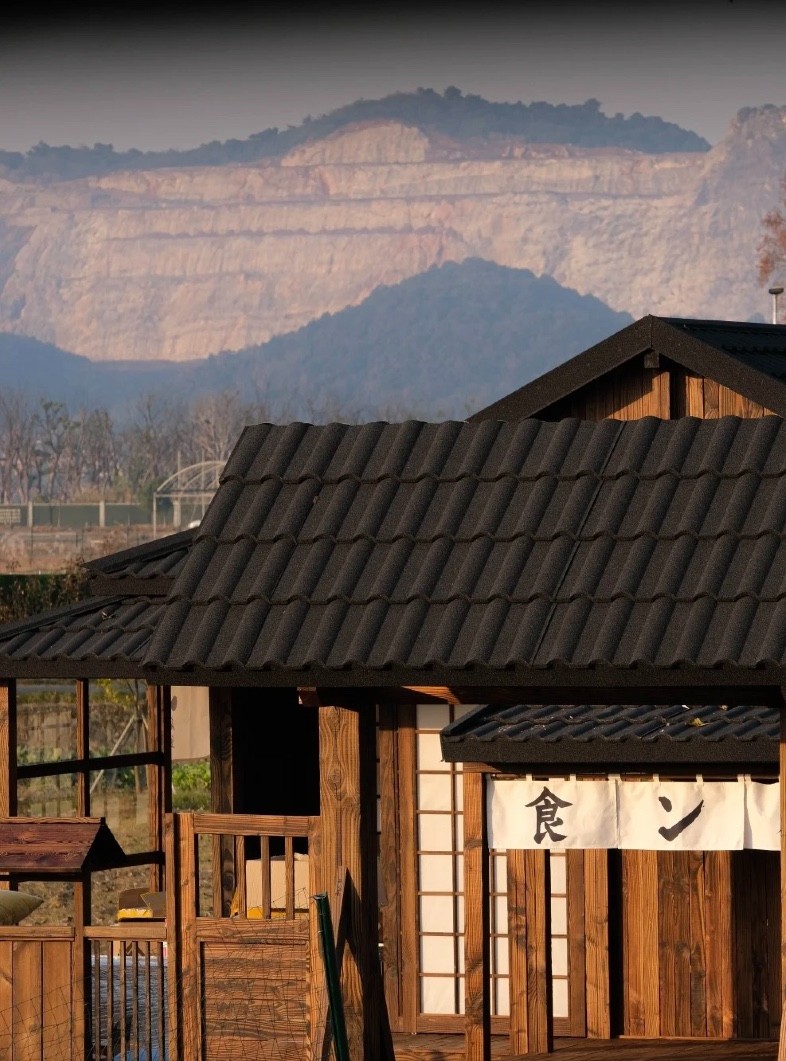

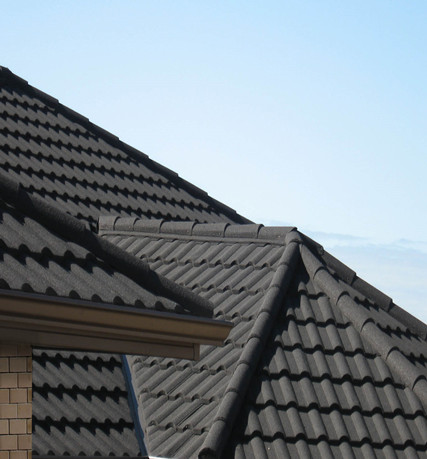

Application

SANGOBUILD STONE COATED METAL ROOF TILE PROJECT IN JIANGXI CHINA (16)_副本.jpg

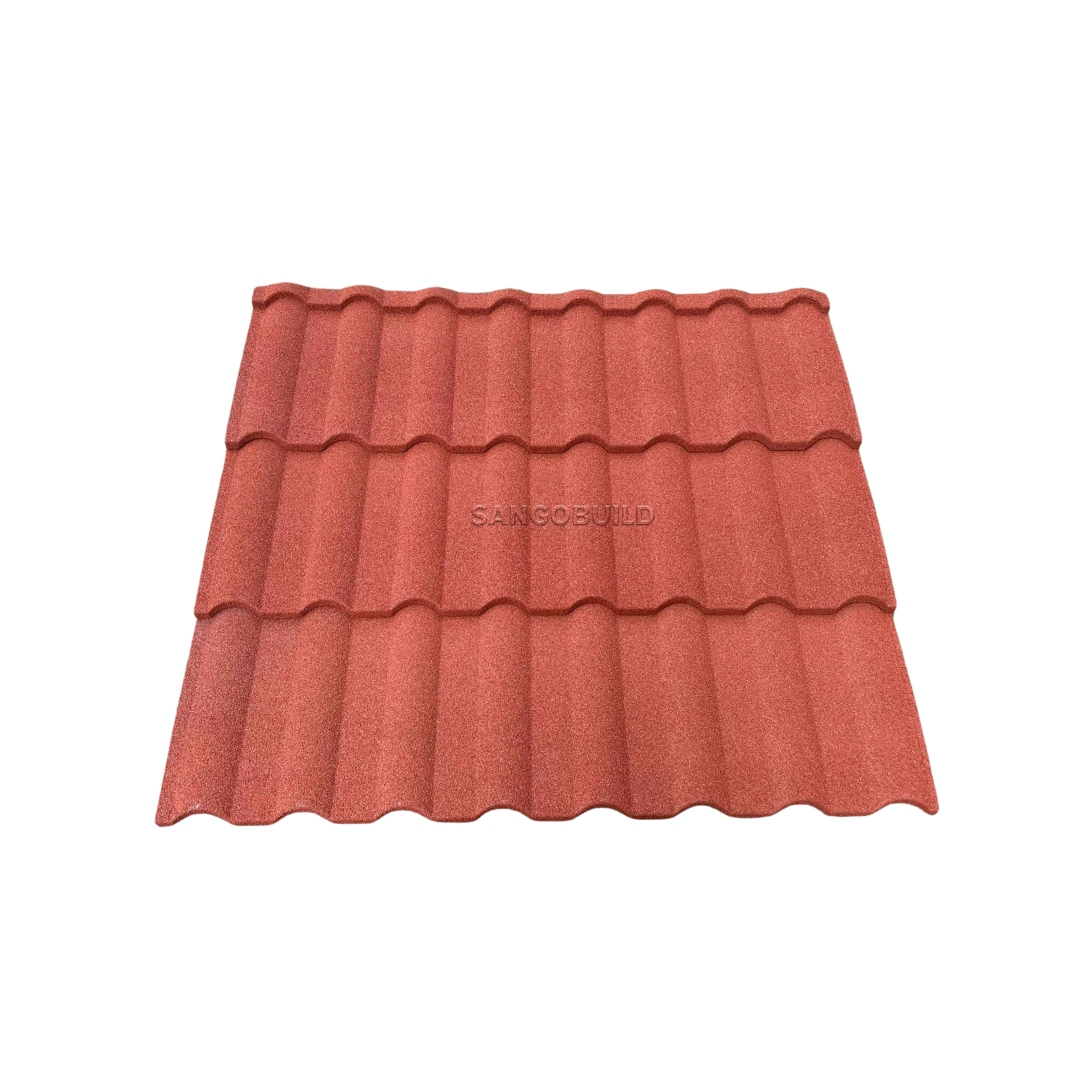

Milano Tile

Milano Tile

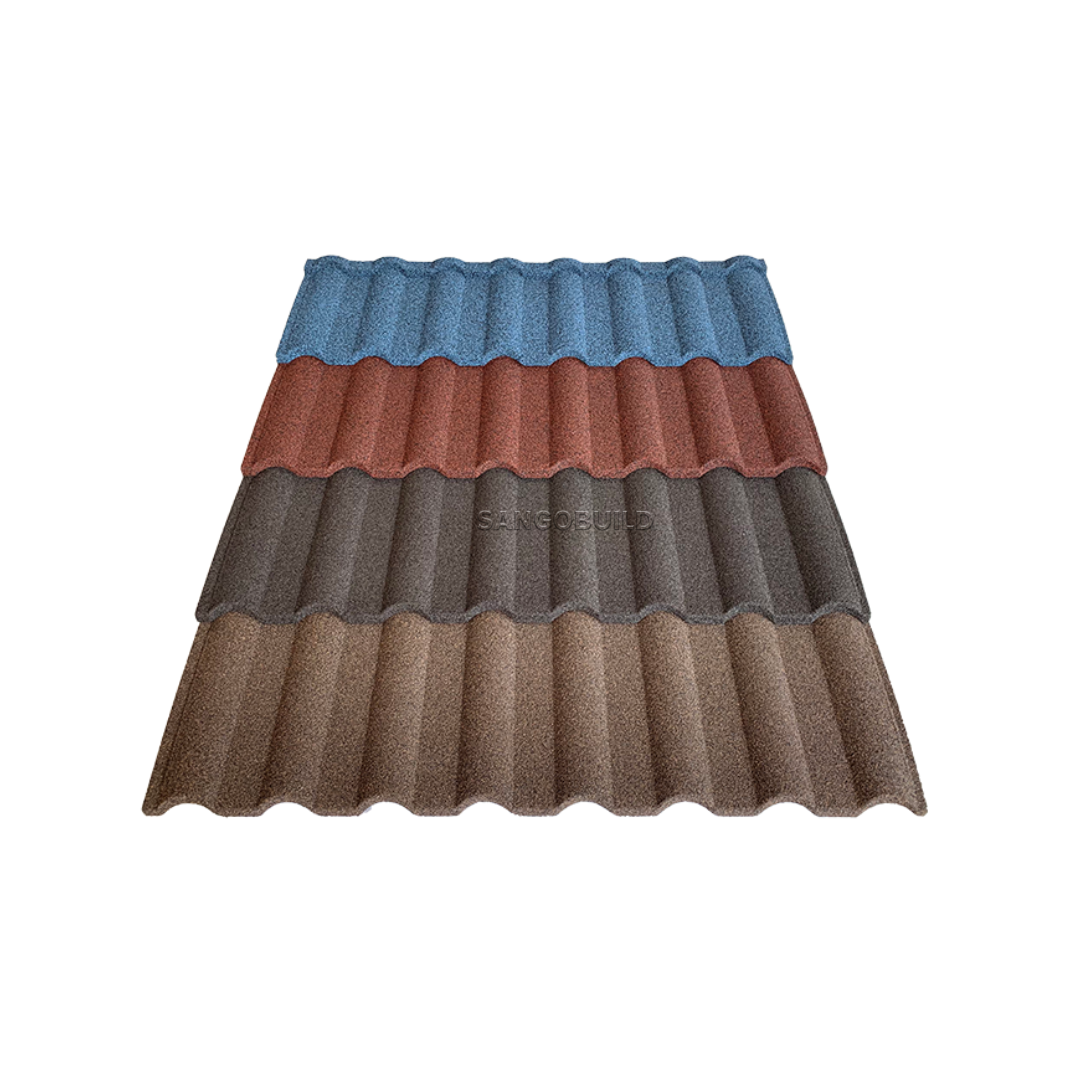

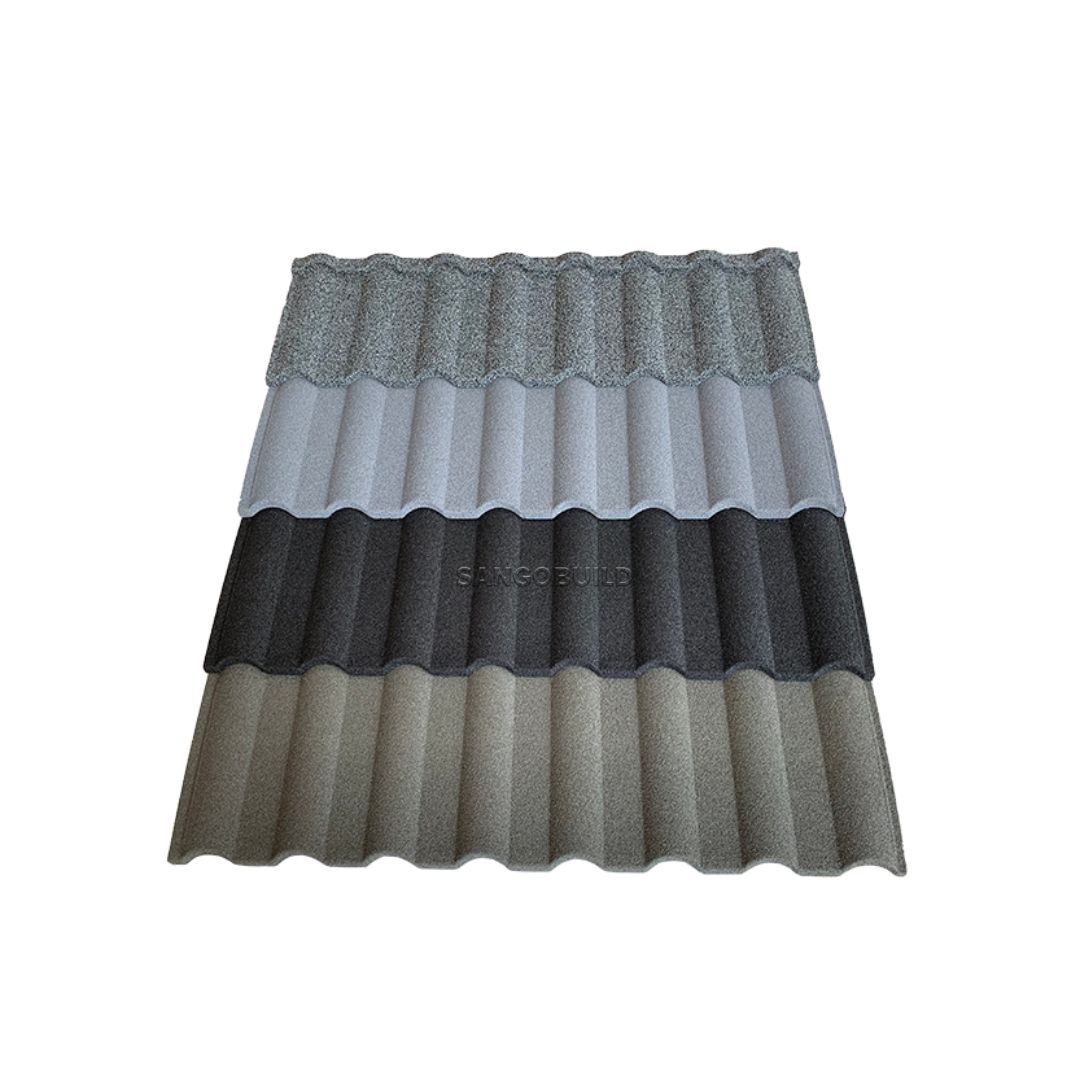

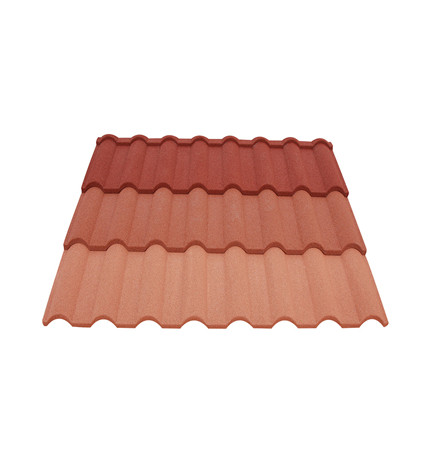

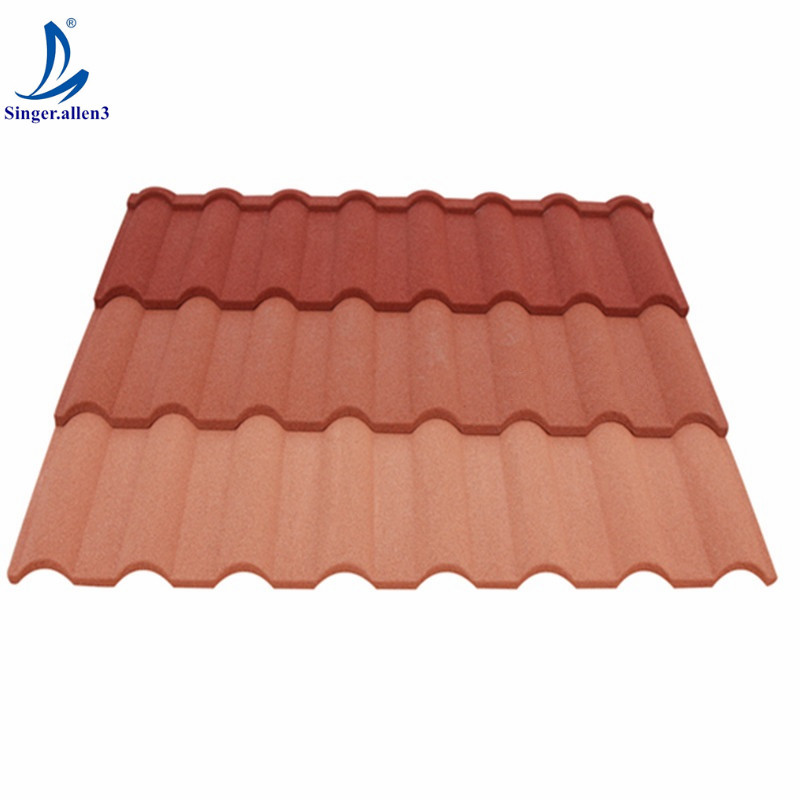

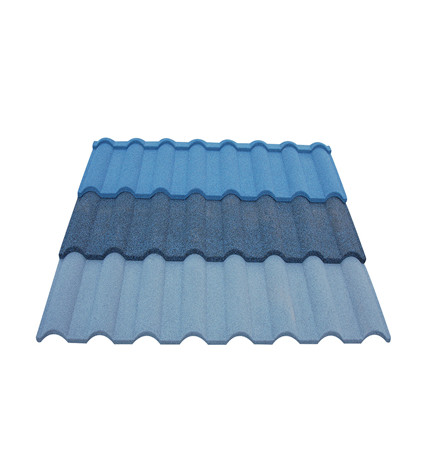

Products Color
