Fish Scale Asphalt Shingle

Length:1000mm±3mm

Width:333mm±3mm

Thickness:2.6mm±0.1mm

Pack:21pieces per bundle

Sq.m/Bundle:3.10 square meter per bundle

Weight:27kg per bundle ±1kg



Product Description

Fish Scale Roof Shingles

Fish Scale Roof Shingles are one of the most popular roofing products on the market. Known for their long life, durability, and wide selection of styles and colors, asphalt shingles are a great economical alternative to other roofing products. With options ranging from standard to luxury, there is an affordable option for every budget. Additionally, they are easy to install and repair, and proper attic ventilation and installation help maximize the life of asphalt shingles.

Fish Scale Asphalt Shingle

What is Fish Scale Roof Shingles

Fish Scale Roof Shingles are a distinctive type of roofing material characterized by their rounded, overlapping design that resembles the scales of a fish. These shingles are primarily used for decorative purposes, adding a unique and elegant touch to architectural designs.

In the past, uninteresting appearance was the biggest strike against asphalt roofing-it just didn't offer the visual interest and charm of classic materials such as wood and tile. But things have changed.Today, asphalt shingles are sold in many textures, grades, and styles that are reasonably convincing at mimicking the look and character of traditional materials.

Specification

Product Name
Fish Scale Shingles
Material
Stone Granules+Fiberglass+Asphalt
Color
Black, Red, Blue, Green, Customized
Length
1000mm(±3.00mm)
Width
333mm(±3.00mm)
Thickness
2.60mm(±0.1mm)
Weight
27kgs/bundle±1kg
Temperature Range
-45℃-90℃
Tensile Strength(Longitudinal)(N/50mm)
>=530
Tensile Strength(Transversal)(N/50mm)
>=550
Heat Resistance
No flow, slide, drippage and bubble(90°C)
Flexibility
No crack being bent for 10°C
Nail Resistance
78N
Resist To Tearing
>100N
Weather Exposure
145mm
Wind Resistance
130km/h
Warranty
30 years
Certificate
ISO9001
Used
Residential, Commercial construction roof




The Advantage of Fish Scale Asphalt Shingle

1. Economic
The cost of asphalt shingles is lower than many other roofing tiles, and the related charges for transportation and installment are reduced much because of lightweight and easy installment.

2. Lightweight and easy to install

The weight of tile shingles is much less weight compared with other roofing materials, so it reduces the requirement for load-bearing support of roofing.

And the process of installment is easy, there are no special accessories are required and it is easy to cut, fasten and fit. Asphalt shingles are considered the easiest roofing materials to install.

3. Wide application

Asphalt shingles could be used for more wide-angle roofing slopes than other roofing materials, it could be used for 15°- 90° roofing slopes. It also could be used in any shape of the roofing and there are many colors to choose.

Noise reduction and heat insulation

The stone chips could reduce the noise when raining or hails, it also could insulate from heat when exposed to extreme UV and keep warm in Winter.

Fish Scale Asphalt Shingle

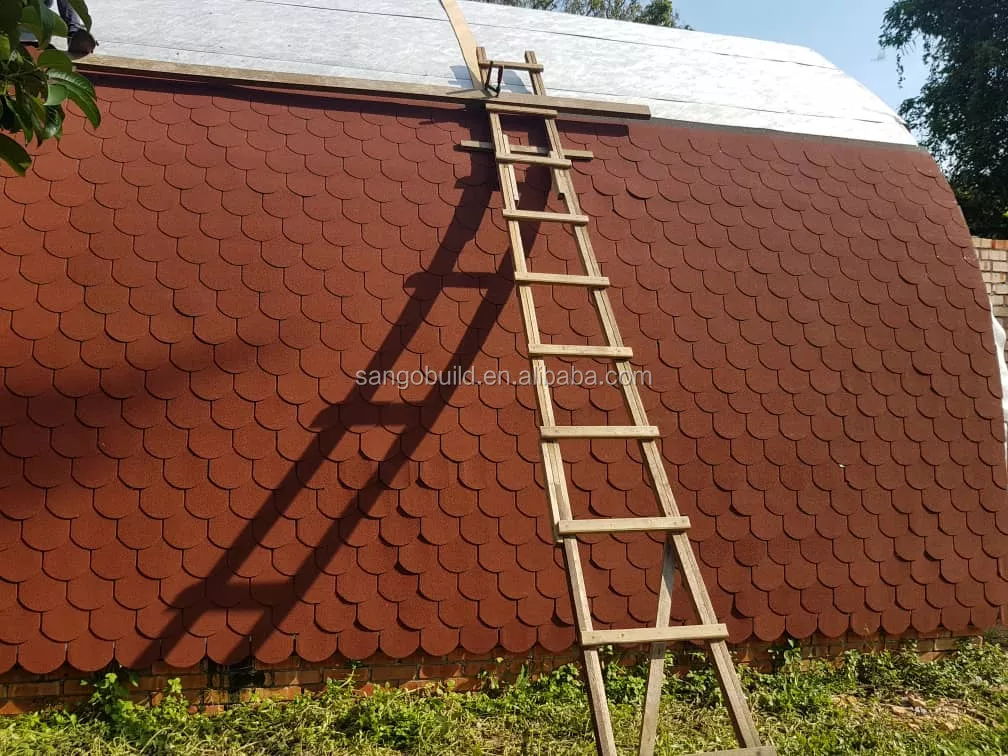

Installation


Fish Scale Asphalt Shingle

Application

   Fish Scale Shingles Depending on your design and functional needs, the use of customized scalloped shingles or siding materials can provide countless uses for your property.     Here are some common uses for fish scale shingles: Decorative or ornamental roofing or siding: Fishscale shingles can be installed for decorative purposes or as a roofing or siding trim. Use fish scale shingles on an entire roof or all siding for a uniform, interesting visual effect. Or add them to a small section to create a striking contrast. This attention to detail will impress anyone visiting or driving by. Adding fish scale shingles to many small sections is a popular way to draw attention and create texture.     Historic homes: While scalloped shingles can complement any aesthetic, they are also commonly used to decorate traditional historic homes. These materials also adapt to the original architectural style of the home. Victorian and queen anne style properties often feature fish scale shingles.

Fish Scale Asphalt Shingle

Fish Scale Asphalt Shingle

Fish Scale Asphalt Shingle




Installation
