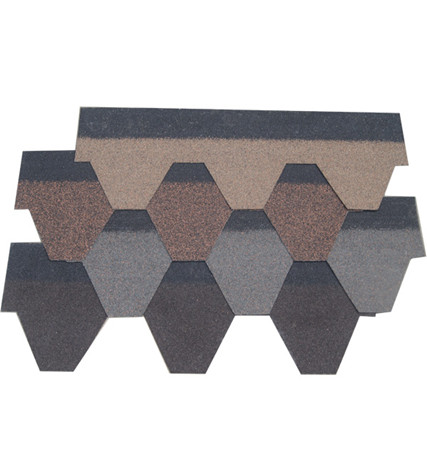

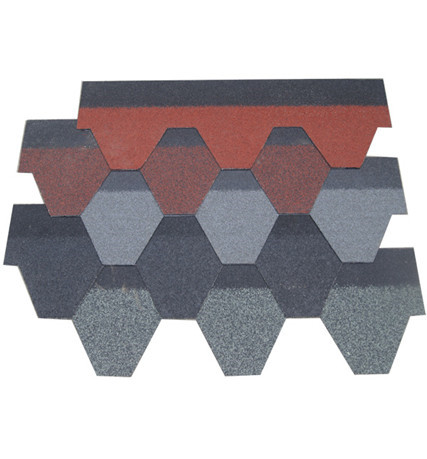

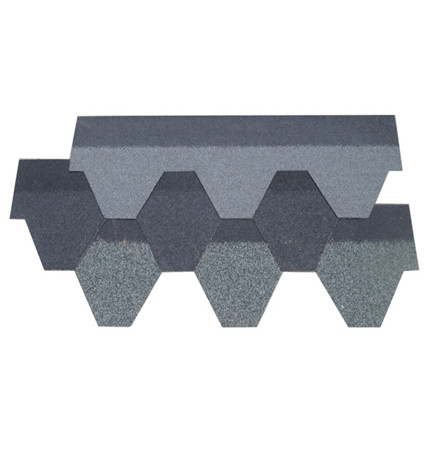

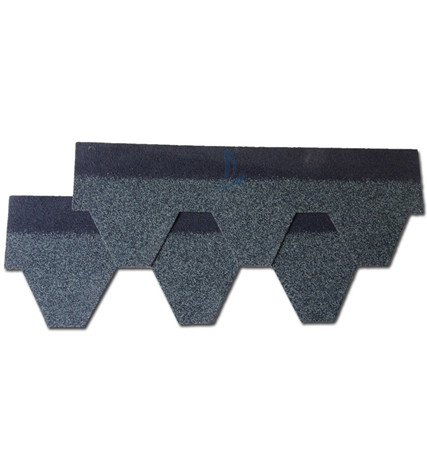

Mosaic Asphalt Shingle

Length:1000mm±3mm

Width:333mm±3mm

Thickness:2.6mm±0.1mm

Pack:21pieces per bundle

Sq.m/Bundle:3.00 square meter per bundle

Weight:22kg per bundle ±1kg

Inquire Now Next Product

Product Description

Mosaic Roof Tiles

Specification

Product Name	Mosaic Roof Tiles
Material	Stone Granules+Fiberglass+Asphalt
Color	Black, Red, Blue, Green, Customized
Length	1000mm(±3.00mm)
Width	333mm(±3.00mm)
Thickness	2.60mm(±0.1mm)
Weight	22kgs/bundle±1kg
Temperature Range	-45℃-90℃
Tensile Strength(Longitudinal)(N/50mm)	>=530
Tensile Strength(Transversal)(N/50mm)	>=550
Heat Resistance	No flow, slide, drippage and bubble(90°C)
Flexibility	No crack being bent for 10°C
Nail Resistance	78N
Resist To Tearing	>100N
Weather Exposure	145mm
Wind Resistance	130km/h
Warranty	30 years
Certificate	ISO9001
Used	Residential, Commercial construction roof

What’s Asphalt Shingles?

Although wood shingles, slate, tile, metal, and a host of other materials can be used to surface house roofs, asphalt stands out as the roofing material of choice because it is relatively affordable, easy to apply, fire-resistant, comparatively lightweight, available almost every-where, and durable enough to last for 15 to 40 years.

In the past, uninteresting appearance was the biggest strike against asphalt roofing-it just didn't offer the visual interest and charm of classic materials such as wood and tile. But things have changed.Today, asphalt shingles are sold in many textures, grades, and styles that are reasonably convincing at mimicking the look and character of traditional materials.

The Advantage of Laminated Asphalt Shingle

1.Economic
The cost of asphalt shingle is lower than many other roofing tile,and the related charge for transportion and installment are reduced much because of light weight and easy installment.

2.Light weight and easy to install

The weight of asphalt shingle is much less weight compared with other roofing material,so it reduce the requirement for load-bearing support of roofing.

And the process of installment is easy,there are no special accessories are required and it easy to cut, fasten and fit.Asphalt shingles are considered the easiest roofing materials to install.

3.Wide application

Asphalt shingle could use for more wide-angle roofing slope than other roofing material,it could be used for 15°-90° roofing slope.It also could be used in any shape of the roofing and there are many colors could for choice.

4.Noise reduction and heat insulation

The stone chips could reduce the noise when raining or hailing,it also could insulate from heat when expose to extremely UV and keep warm in Winter.

Advantage

Installation

Installation

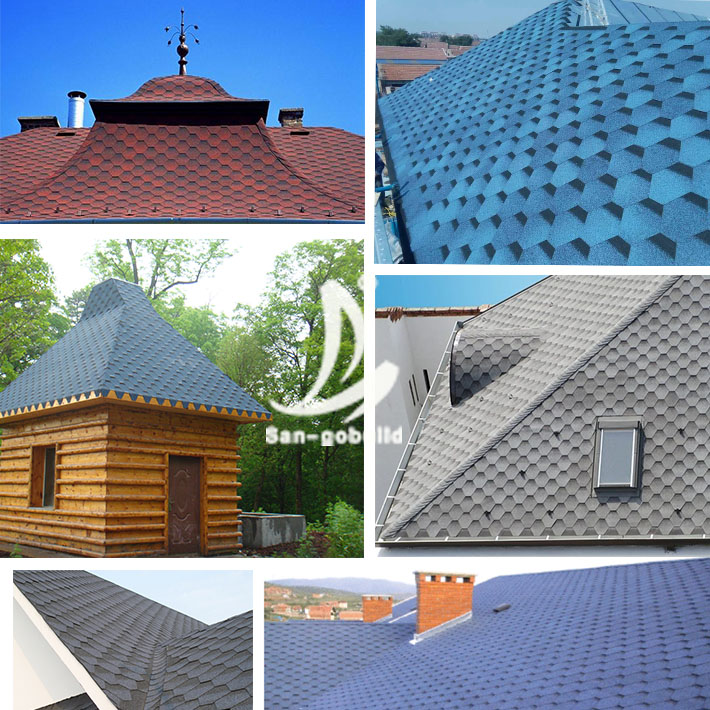

Application

Mosaic Asphalt Shingle

Installation
